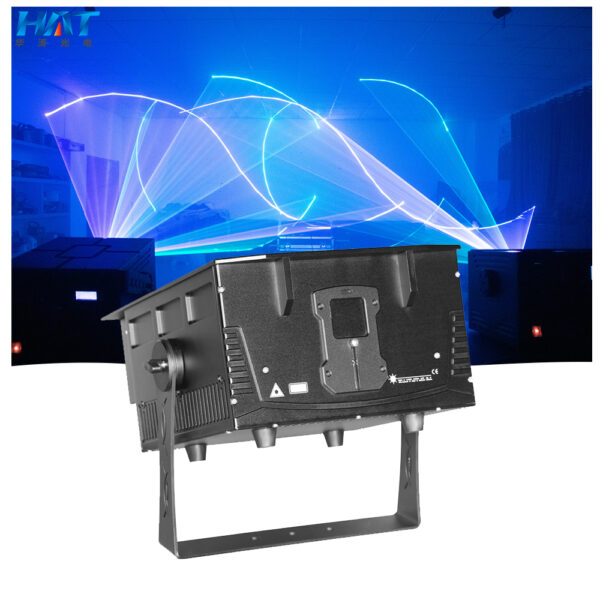

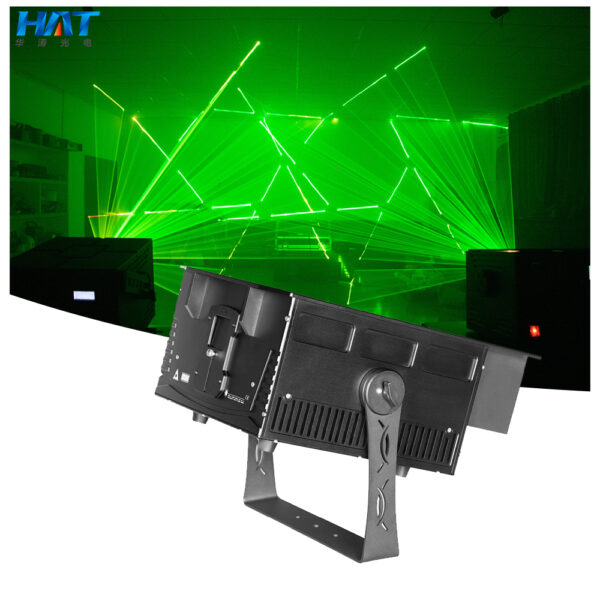

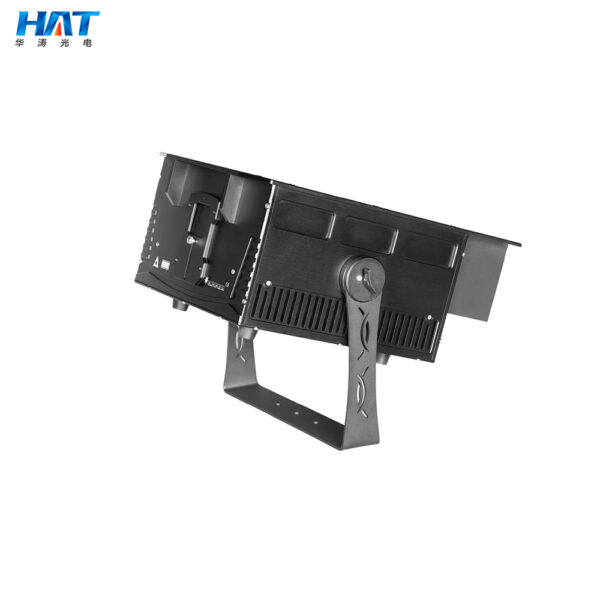

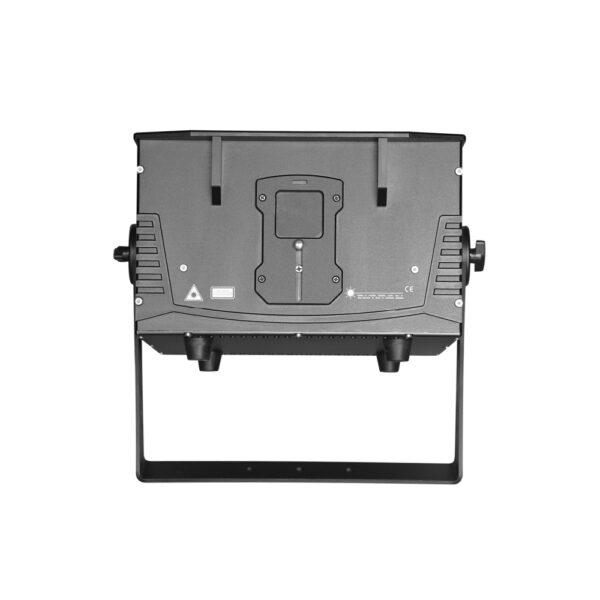

Outdoor waterproof laser 20w

Power input: AC: 110V-250V-50/60hz
Machine power consumption: 600W Laser chip brand: Nichia, Japan
Laser power:Red3W,Green3W,Blue4W
Laser service life: ≥10,000 hours
Laser class: Class IV
Optical scanning angle: +/-30 degrees = 60 degrees High-quality dielectric film reflectivity >98% Wavelength 400nm-700nm (applicable to RGB system) Input control signal: ±5V (position signal) Warranty period: 24 months (non-human factors)
Laser emission angle: <1.6mrad (full angle) laser spot Size: <6.5mm Modulation mode: 0~5V analog, up to >100KHz/TTL analog modulation Scan speed: 35Kpps Longhu galvanometer supports input signal resolution bandwidth: up to 165 MHz
Aspect ratio: any ratio, according to the picture characteristics The aspect ratio can be adjusted arbitrarily with the carrier. The imaging method is line-based 3D/2D patterns and animations (with software). The playback angle is Max60°. Outdoor temperature use: -50-50° (built-in thermostat, automatically adjusts the temperature). Safety standards follow IEC60825 standard safety. Project lightning protection, over-current and over-voltage protection, leakage protection, moisture-proof and anti-interference optical path sealing three-layer structure, the optical path layer is completely sealed dust-proof and waterproof level (IP level) IP58 working humidity <95% Control mode: automatic/DMX512 control/ Master-slave synchronization, ILDA interface (can be connected to imported pangolin laser special software) DMX control function: 15-channel control, with black field function, computer interface, compatible with ILDA standard computer laser show. Software control: All ILDA signals are converted by electronic switches. Input and output interface: International unified standard DB-25 input and output. Cooling method: air cooling. Structure method: three-layer structure, with a 60mm insert type in the middle layer. Heat dissipation layer laser temperature control: TEC dual temperature control
